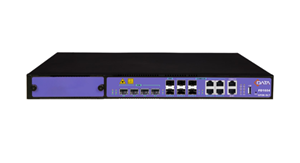

Dimensions

440mm(L)*293mm(W)*44mm(H)

Weight

3.6Kg (FD1604S-C1)

3.0Kg (FD1604E-C1)

Uplink Port

COMBO port

4* 10/ 100/ 1000M auto-negotiation Ethernet ports

10-Gigabit

2* SFP+ interfaces

PON Port

Quantity

4 (FD1604S-C1)

4/8 (FD1604E-C1)

Physical Interface

SFP slot

Interface Type

GPON: ITU-TG.984.2 Class B+/Class C+/Class C++

Max Splitting Ratio

GPON: 1:128

Management Port

1* 100/ 1000BASE-Tx out-band Ethernet port 1* CONSOLE local management port

USB Port

1* USB interface (It’s used to backup configuration, upgrade program and record log information)

PON Port

Attribute

Transmission Distance

20KM

Port Rate

GPON:     Downstream: 2.5Gbps     Upstream: 1.25Gbps

Wavelength

Forwarding: 1490nm                Receiving: 1310nm

Interface Type

SC/ UPC

Fiber type

9/ 125µm SMF (Single Mode Fiber)

Light Transmission Power

Class B+: +1.5 ~+5dBm

Class C+: +3 ~ +7dBm

ClassC++: +4.5 ~ +10dBm

Receiving

Sensitivity

Class B+: -28dBm

Class C+: -30dBm

Class C++: -31dBm

Saturation Power

Class B+: -8dBm

Class C+: -12dBm

Class C++: -10dBm

Network Management Method

Support CLI, SNMP, TELNET, SSH, WEB

Business Capabilities

Support    device    log,    device    upgrade,    device    management,    condition monitoring, configuration management, and user management.

Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on.

PON  function  configuration   management:   Like  OLT  authentication,   DBA template, service template, line template and so on.

Layer 3 function: support static routing, dhcp-relay and vlanif configuration.

Backplane Bandwidth

63G (FD1604S-C1) 78G (FD1604E-C1)

AC

100V ~ 240V, 47 ~ 63Hz

DC

-40V ~ -72V

BBU (Backup Battery Unit)

DC: 11V~14V.

Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will

switch back to the regular power supply and charge the backup power supply.

Maximum Power

34.6W (FD1604S-C1) 49W (FD1604E-C1)

Working Temperature

-15 ~ 50?

Storage Temperature

-40 ~ 85?

Ambient Humidity

5 ~ 90% (Non-condensing)
